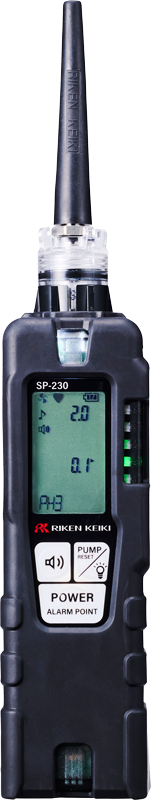

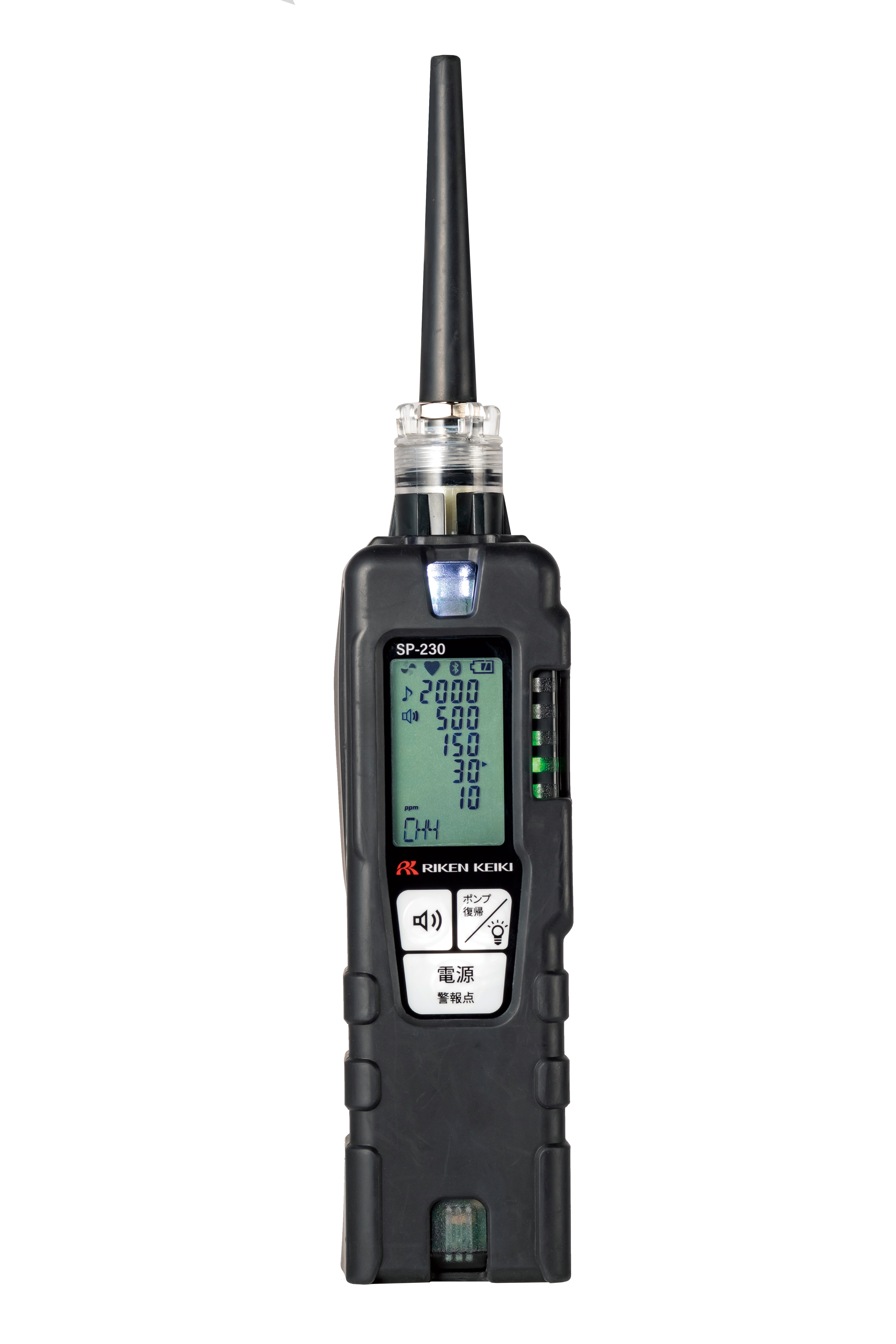

SP-230 Series

Ensure immediate detection of dangerous gas leaks with our SP-230 Series portable gas leak detectors. Choose from our CFC, hydrogen, fumigation, and semiconductor gas versions. The new and improved version of our previous SP-220 Series, featuring enhanced durability and ease of use.

SP-230 Series

Feature01

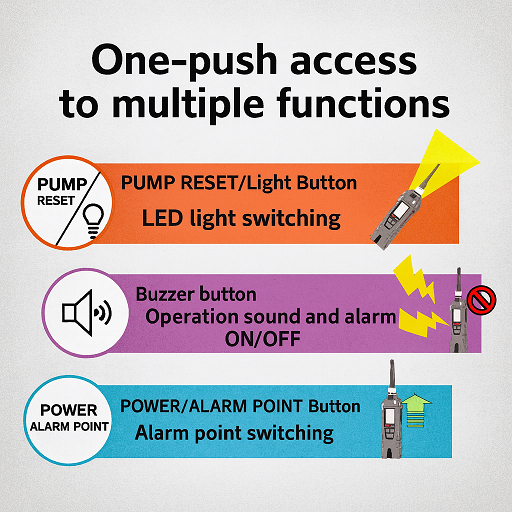

Easier than ever to use

Easy access to multiple functions. Change the gas, alarm setpoints and sounds, and light settings all with just the push of a button. Improved display features for increased visibility even in dark places. Current alarm setpoint, gas concentration, and activity in particular shown using colors and numeric display, making safety management even easier.

Feature02

Improved durability

Our previous model, the SP-220 Series, received a durability rating of IP55 and passed our drop test at a height of 1.5 meters. Our new and improved SP-230 Series features improved durability, with an IP67 durability rating and passing our drop test at a height of 2 meters.

Feature03

Measure a wide variety of gases

The following 4 versions are available, allowing for measurement of a wide range of gases.

CFC gases: 14 gases
Hydrogen gas: 1 gas (10-2000ppm)
Fumigation gas: 7 gases
Semiconductor gas: 50 gases

Product Name	SP-230(TYPE SC)	SP-230(TYPE H2)	SP-230(TYPE FUM)	SP-230(TYPE F)
Product Image
Product Subtitle	Portable Gas Leak Checker	Portable Gas Leak Checker	Portable Gas Leak Checker	Portable Gas Leak Checker
Product Type	Portable Gas Detector	Portable Gas Detector	Portable Gas Detector	Portable Gas Detector
Industries	Semiconductors	Infrastructure, Semiconductors, Sustainable Energy, Marine		Infrastructure
Use Purpose	Leak check	Leak check	Leak check	Leak check
Single/Multi	Multi	Multi	Multi	Multi
Certification	CE Mark	Japanese Certification	CE Mark	Japanese Certification
Detectable Gas	50 types AsH3, B2H6, C2H2, C2H2CL2, C2H4, C2H5OH, C2HCL3, C3H6O, C3H8, C4F6, C6H6, C7H8, C8H10, CH2C2F4, CH2CL2, CH3Br, CH3CL, CH3OH, CH4, CO, COS, D2, EDC, EO, GeH4, H2, H2S, H2Se, HBr, HCHO, HCL, i-C4H10, IPA, MEK, n-C6H14, NH3, PH3, PO, R-134a, R-22, R-245FA, R-32, R-404A, R-407C, R-41, R-410A, SiH4, SO2, tC3H2F4, VCM	H2	7 Types C2H4Br2, CH3Br, CH3I, CS2, HCN, PH3, SO2F2	14 types CH2C2F4, R-123, R-134a, R-142b, R-22, R-23, R-290, R-32, R-404A, R-407A, R-407C, R-410A, R-507A, R-600A
Detection Range	Depend on Target Gas	Depend on Target Gas	Depend on Target Gas	Depend on Target Gas
Principle of Detection	Hot Wire Type Semi-Conductor Method	Hot Wire Type Semi-Conductor Method	Hot Wire Type Semi-Conductor Method	Hot Wire Type Semi-Conductor Method
Sampling Method	Internal Sample Pump	Internal sample pump	Internal Sample Pump	Internal sample pump
Ingress Proof Rating	IP67	IP67	IP67	IP67
Dimensions	Approx. 41 (W) × 186 (H) × 38 (D) mm (excluding projections)	Approx. 41 (W) × 186 (H) × 38 (D) mm (excluding projections)	Approx. 41 (W) × 186 (H) × 38 (D) mm (excluding projections)	Approx. 41 (W) × 186 (H) × 38 (D) mm (excluding projections)
Weight	Approx. 220 g (Excluding Dry Batteries)	Approx. 220 g (Excluding Dry Batteries)	Approx. 220 g (Excluding Dry Batteries)	Approx. 220 g (Excluding Dry Batteries)
Remarks	LED Light Operation Sound, Alarm ON/OFF Alarm Point Switching	LED Light Operation Sound, Alarm ON/OFF Alarm Point Switching	LED Light Operation Sound, Alarm ON/OFF Alarm Point Switching	LED Light Operation Sound, Alarm ON/OFF Alarm Point Switching
Power Source	AA Alkaline Batteries (2 pcs.)	AA Alkaline Batteries (2 pcs.)	AA Alkaline Batteries (2 pcs.)	AA Alkaline Batteries (2 pcs.)
Continuous Operation	13 Hours or More (25℃, No Alarm, No Lighting)	13 Hours or More (25℃, No Alarm, No Lighting)	13 Hours or More (25℃, No Alarm, No Lighting)	13 Hours or More (25℃, No Alarm, No Lighting)
Operating Temperature Range	-20 ºC to +55 ºC(no sudden changes)	-20 ºC to +55 ºC(no sudden changes)	-20 ºC to +55 ºC(no sudden changes)	-20 ºC to +55 ºC(no sudden changes)
Operating Humidity Range	Up to 95 %RH (no condensation)	Up to 95 %RH (no condensation)	Up to 95 %RH (no condensation)	Up to 95 %RH (no condensation)
Applicable Instruments

Show more specs
