SDM Series

The SDM Series is a selection of maintenance tools which automate testing and calibration of your gas detection equipment. Use to test for gas sensitivity before use or for periodic checks during operation. Connect to a PC for even more efficient device management.

SDM Series

Feature01

Simple design

Simple and easy to use - simply attach the gas detector you want to inspect and the calibration gas cylinder with one click and let it do the rest, from reading data to displaying the results of the test. Features a space-saving compact design which eliminates the need for installation work.

Feature02

Perform maintenance on several devices at a time

Connect multiple modules to allow for simultaneous maintenance of several devices at a time, saving you time on testing and calibration. SDM-3R allows for connecting up to 10 modules at once.

Feature03

Manage using your PC

Connect to your PC to see test results and easily change your alarm detector's setpoints and standard calibration values.

Test results and history can be exported as an Excel file for more efficient device and risk management.

Test results can also be conveniently stored electronically on a USB flash drive.

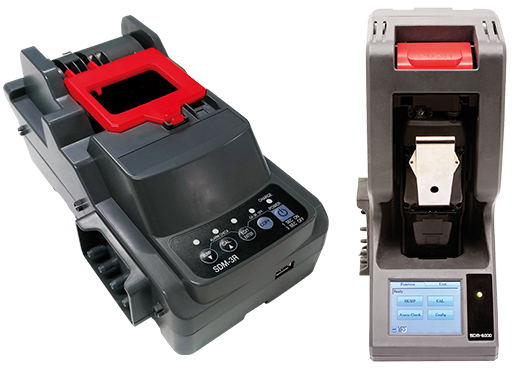

Product Name	SDM-3R	SDM-6000
Product Image
Product Subtitle	Calibration Station	Calibration Station
Product Type	Calibration Station	Calibration Station
Industries	Infrastructure, Sustainable Energy, Marine, Oil & Gas, Steel	Infrastructure, Sustainable Energy, Marine, Oil & Gas, Steel
Use Purpose	Calibration/Bump Testing	Calibration/Bump Testing
Single/Multi
Certification
Detectable Gas	N/A	N/A
Detection Range	N/A	N/A
Principle of Detection	N/A	N/A
Sampling Method	Internal Sample Pump	Internal Sample Pump
Ingress Proof Rating	N/A	N/A
Dimensions	Approx. 130 W x 100 H x 250 D mm (5.12" W x 3.94" H x 9.84" D)	Approx. 130 W x 330 H x 183 D mm (5.11" W x 13" H x 7.2" D)
Weight	Approx. 0.8 kg	Approx. 1.7 kg
Remarks	Charge, Calibrate, Bump Test, and Alarm Test	Charge, Calibrate, Bump Test, and Alarm Test
Power Source	100 240 VAC	100 240 VAC
Continuous Operation	N/A	N/A
Operating Temperature Range	0℃ to 40℃(no sudden changes)	0℃ to 40℃ (No Sudden Changes)
Operating Humidity Range	0 to 95 %RH (no-condensing)	0 to 95 %RH (no-condensing)
Applicable Instruments	GX-3R, GX-3R Pro	GX-6000

Show more specs
