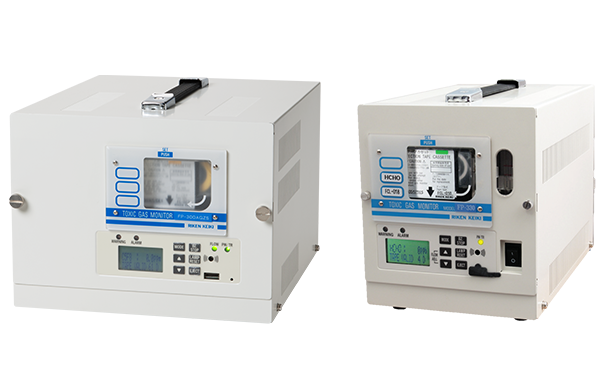

FP-300 Series

The FP-300 Series is our single-point paper tape high sensitivity toxic gas monitor. Ideal for monitoring toxic gases released from manufacturing equipment and the surrounding environment. Its transportable design makes it convenient to take to new locations as needed.

FP-300 Series

Feature01

Convenient and easy to use

Incredibly simple and easy to use: simply press the power ON and measurement will begin automatically. Each tape cassette can be used for approximately one month of continuous monitoring, and replacement is a breeze. Its transportable design allows for ease of use in new or different locations when needed.

Feature02

Advantages of paper tape technology

Because paper tape detectors use chemical reactions which take place directly on the tape itself, this method is practically free of interference from other gases. This method also allows for high selectivity and detection of extremely low gas concentrations. In addition, paper tape detectors leave physical evidence of gas detection, eliminating the need for calibration.

-->

Feature03

A wide range of tapes available

We offer a diverse range of detection tapes for measurement of some 20 different gases at even extremely low concentrations (the ppb to ppm level), including many gases commonly used during the semiconductor manufacturing process such as etching gases C₅F₈ and C₄F₆, hydrogen fluoride, arsine, germane, phosphine and more.

Stay within TLV limits and protect worker safety at all times with our FP-300 Series paper tape gas monitor.

Product Name	FP-300	FP-301	FP-330	FP-300AGZS
Product Image
Product Subtitle	Highly Sensitive Toxic Gas Monitor	Highly Sensitive Toxic Gas Monitor	Highly Sensitive Toxic Gas Monitor	Highly Sensitive Toxic Gas Monitor
Product Type	Fixed Gas Detector	Fixed Gas Detector	Fixed Gas Detector	Fixed Gas Detector
Industries	Semiconductors	Semiconductors	Semiconductors	Semiconductors
Use Purpose	Safety management	Safety management	Safety management	Safety management
Single/Multi	Single	Single	Single	Single
Certification
Detectable Gas	24 types HCL,HBr,CLF3, HF,NH3,TEMAH,TMA,C5HF7, C3F6,C5F8,C4F6,COCL2,CL2, RuO4,CF3OF,H2S,AsH3,H2Se, PH3,SiH4,Si2H6,B2H6,TBAs, GeH4	H2Se, AsH3	Formaldehyde	C5F8, C4F6
Detection Range	Depend on target gas.	H2Se：0 to 200 ppb AsH3：0 to 15 ppb	0.000-0.500ppm, 0.00-1.00ppm, 0.0-5.0ppm	C5F8：0～5ppm, C4F6：0～5ppm
Principle of Detection	Chemical Tape Method	Chemical Tape Method	Chemical Tape Method	Chemical Tape Method
Sampling Method	Internal sample pump	Internal sample pump	Internal sample pump	Internal sample pump
Ingress Proof Rating	N/A	N/A	N/A	N/A
Dimensions	Approx. 164(W) x 198(H) x 263(D) mm (Desk top type) Approx. 164(W) x 164(H) x 263(D) mm (Panel mounting type)	Approx. 164(W) x 198(H) x 263(D) mm (Desk top type) Approx. 164(W) x 164(H) x 263(D) mm (Panel mounting type)	164(W)×198(H)×263(D) mm	250(W)×198(H)×300(D)mm
Weight	Approx 6.5kg (Desk top type) Approx 5.5kg (Panel mounting type)	Approx 6.5 kg (Desk top type) Approx 5.5 kg (Panel mounting type)	6.5kg	9.5kg
Remarks	Trans-portable, Self-diagnostic function,	Trans-portable,Self-diagnostic function,	Trans-portable, Self-diagnostic function,	Trans-portable, Self-diagnostic function,
Power Source	100 to 220 VAC±10 %, or 24 VDC ±10 %	100 to 220 VAC±10 %, or 24 VDC ±10 %	100 V to 240 VAC ±10%	100 V to 240 VAC ±10%
Continuous Operation	N/A	N/A	Up to 1 month (without gas), with tape remaining display, tape end warning, and alerts.	Detection tape usage time: Up to 2 months (without gas)
Operating Temperature Range	5 to 35 ℃ (no sudden changes)	5 to 35 ℃ (no sudden changes)	5℃ to +35℃(no sudden changes)	5℃ to +35℃(no sudden changes)
Operating Humidity Range	30 to 80 %RH (Non-Condensing)	30 to 80 %RH (non-Condensing)	30 to 90%RH	30 to 90%RH
