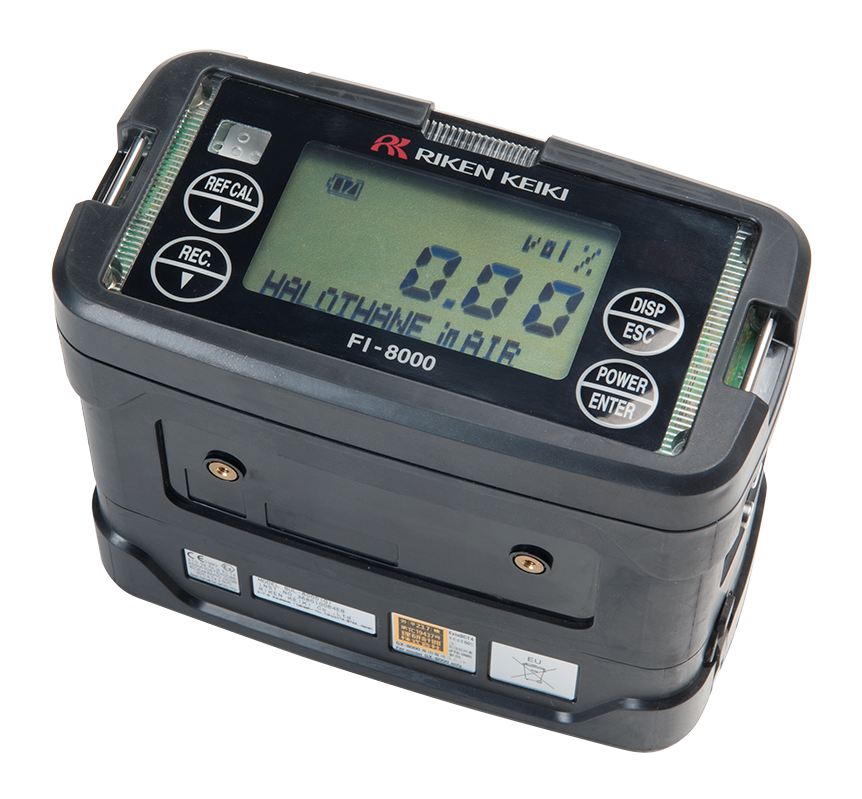

FI-8000
This portable gas monitor is equipped with a physical sensor and allows for measurement of up to 8 highly concentrated gases with just one device. Reduce the number of devices used and lower management costs.
%E8%BB%BD%E9%87%8F%E7%89%88.png)
FI-8000
This portable gas monitor is equipped with a physical sensor and allows for measurement of up to 8 highly concentrated gases with just one device. Reduce the number of devices used and lower management costs.
Feature01
Customizable for up to 8 different gases
Measure up to 8 different gases all with one device. Customizable to suit your specific needs - simply choose the combination of gases you need to measure when you order. Choose from a wide selection of gases, including specialized gases such as anesthetic and fumigation gases.
Feature02
Superior durability

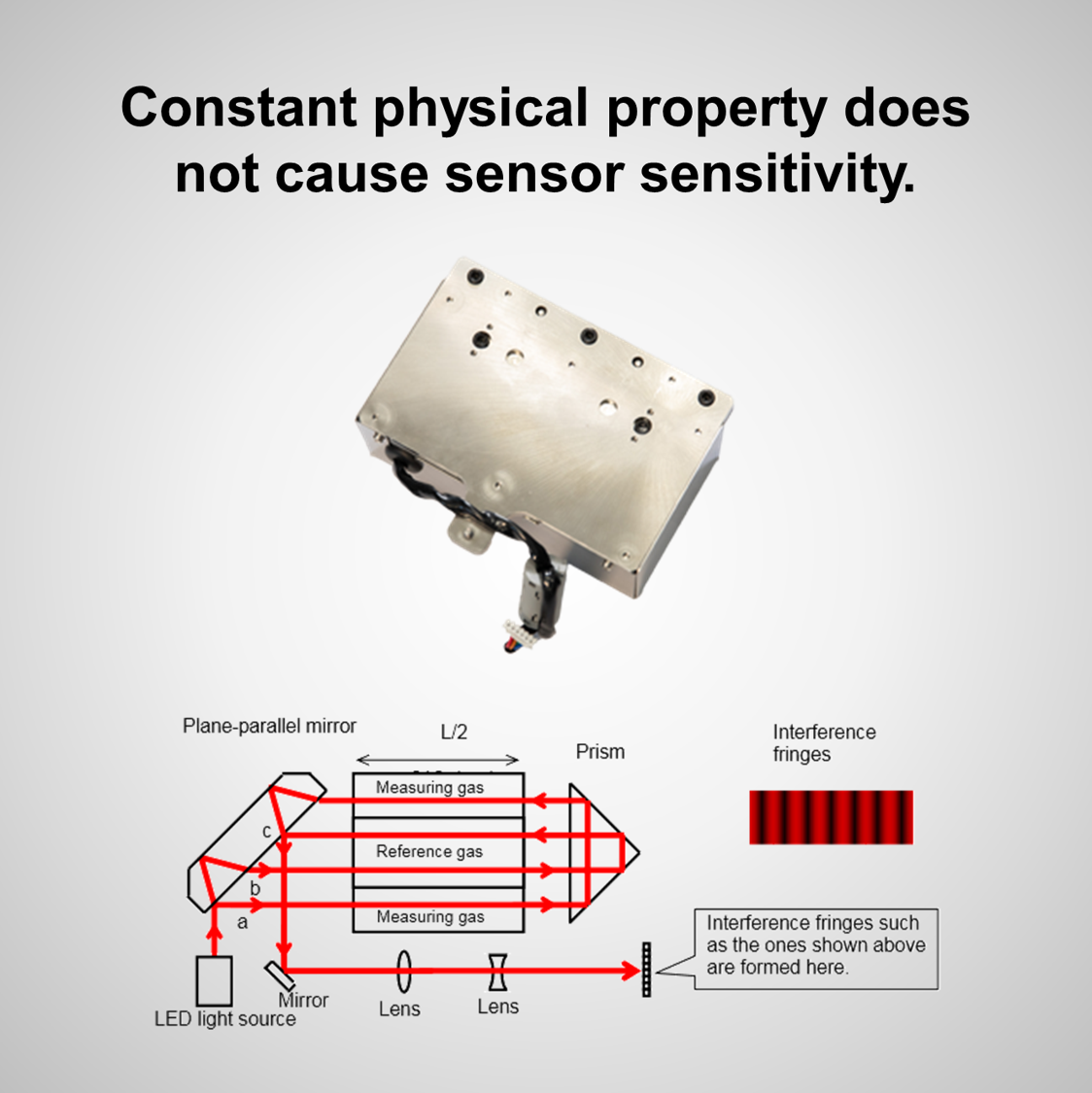

Uses a physical (optical interferometric) sensor, for long-lasting accurate, reliable measurement when used properly. Its optical interferometric sensor determines the refractive index of gases, which is then converted to a gas concentration. Because refractive index is a constant physical property, it does not cause sensor sensitivity to degrade over time.
Feature03

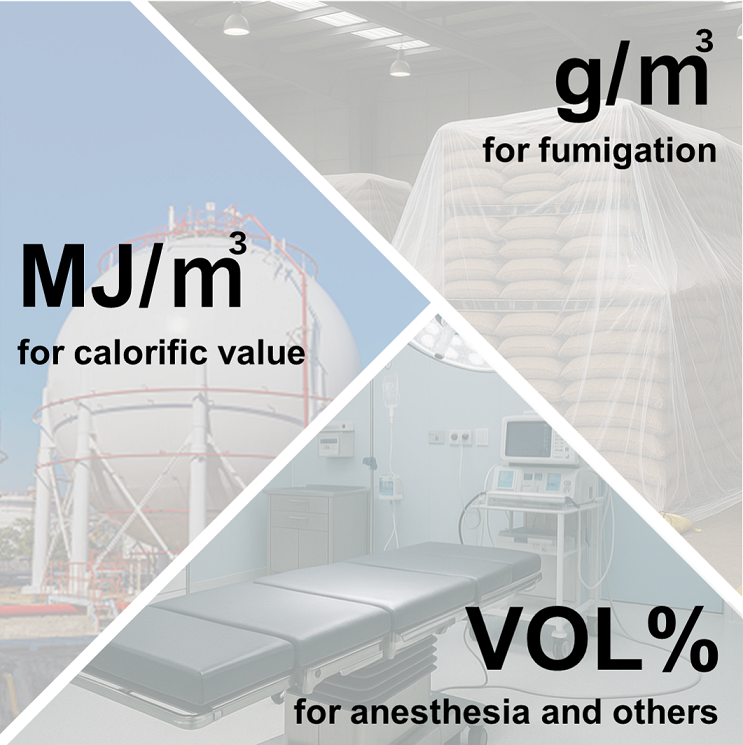

Measure gas concentration, mass and calorific values
In addition to the standard units typically measured by gas detectors, such as LEL and VOL, the FI-8000 also displays units such as MJ, kcal, g/m3, oz/cft, and BTU/cf. This allows for use in a variety of environments while maintaining compliance with all applicable gas monitoring regulations.
| Product Name | FI-8000 | |||
|---|---|---|---|---|
| Product Image |
%E8%BB%BD%E9%87%8F%E7%89%88.png)
|
|||
| Product Subtitle | Optical Interterometric Gas Concentration Meter | |||
| Product Type | Portable Gas Analyzer , Portable Gas Detector | |||
| Industries | Infrastructure, Semiconductors, Sustainable Energy, Marine, Oil & Gas, Steel | |||
| Use Purpose | Concentration management | |||
| Single/Multi | Multi | |||
| Certification | Japanese Certification, IECEx, ATEX | |||
| Detectable Gas | Up to 8 Types It Can Detect All Gases Based on Its Detection Principle. There Are Also Many Proven Examples. The List Can Be Provided Immediately. | |||
| Detection Range | Depend on Target Gas | |||
| Principle of Detection |
Interferometer Method | |||
| Sampling Method | Internal Sample Pump | |||
| Ingress Proof Rating |
IP67 | |||
| Dimensions | Approx. 154(W) × 127(H) × 81(D) mm (projection portions excluded) | |||
| Weight | Approx. 1.1 kg [Dry Battery Unit] Approx. 1.2 Kg [Lithium-Ion Battery Unit] |
|||
| Remarks | Gas Type Switching | |||
| Power Source | Rechargeable Lithium-Ion Battery Unit, Dry Battery Unit (AA Alkaline Battery 3 pcs.) | |||
| Continuous Operation |
Approx. 18 Hours [TYPE P] (New Dry Battery, 25ºC, Without Illumination) Approx. 24 Hours [TYPE A] (New Dry Battery, 25ºC, Without Illumination) |
|||
| Operating Temperature Range |
-20 to +50ºC (no sudden changes) | |||
| Operating Humidity Range |
0 to 95 %RH (no condensing) | |||
| Applicable Instruments |
